An Asterisk Appears at the end of an Autotest - DTX CableAnalyzer
If the worst case margin falls within the field testers accuracy, it is marked with an asterisk (*). This is a requirement of ANSI/TIA-1152 and IEC 61935-1.
Let's find out which pair had a NEXT margin of 1,9 dB:
To better undestand this, let's draw a graph and put the limit line in as red. Then add the region representing the marginal band, shown in yellow. If the worst case margin should fall into this band, it is marked with an asterisk (*). It is important to understand that the width of the band changes with frequency.
Let's put our result above for Pair 3,6-4,5 on this graph:
It just falls within the accuracy band, hence the * on our test result.
Since accuracy is dependent upon frequency, it is possible to have two results with the same margin, but only one of them reported as marginal.
If you are looking for the specific frequency points of the marginal band, please click on the appropriate link below:
The accuracy bands programmed into the DTX CableAnalyzer are taken from the Independent Verification Testing with Underwriters Laboratories (UL).

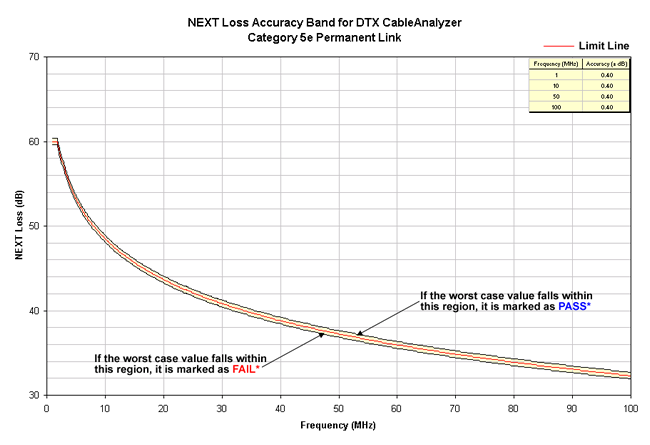

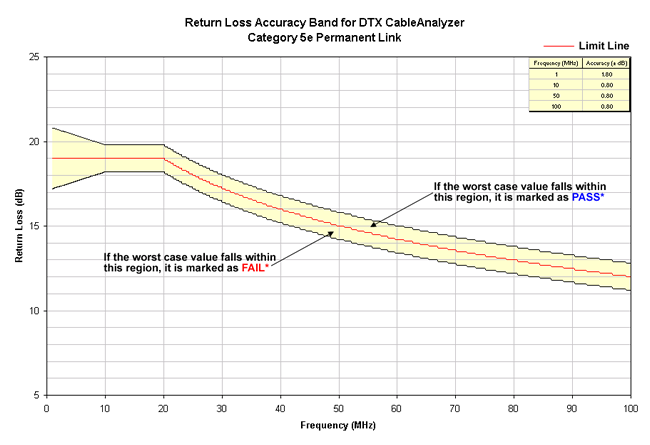

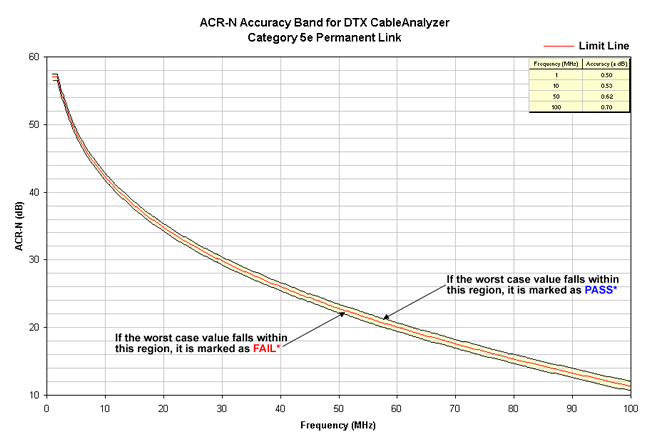

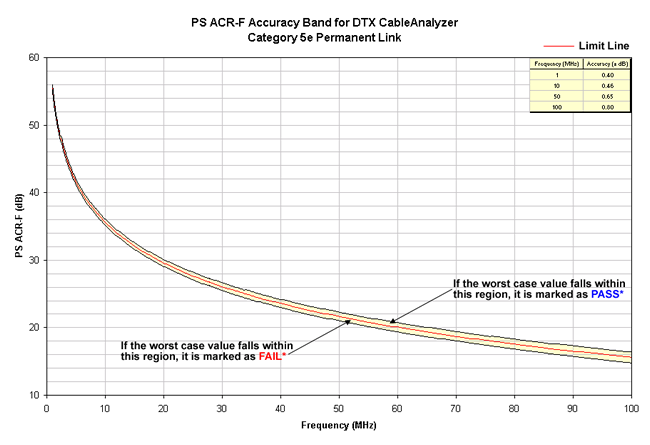

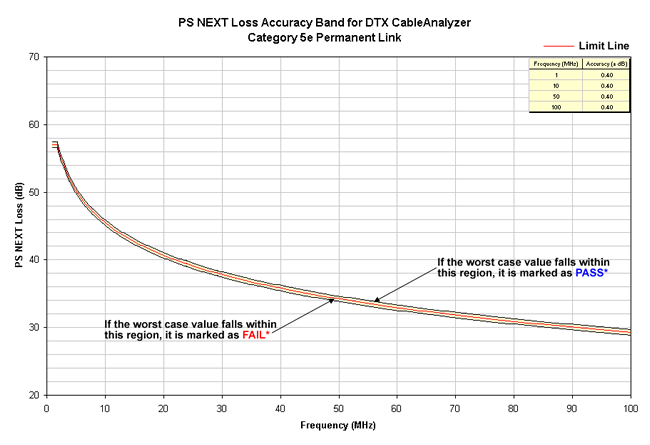

Permanent Link nach Kategorie 5e
You can also download these as a look up table.
 |
 |
 |
 |
 |
 |
 |
|

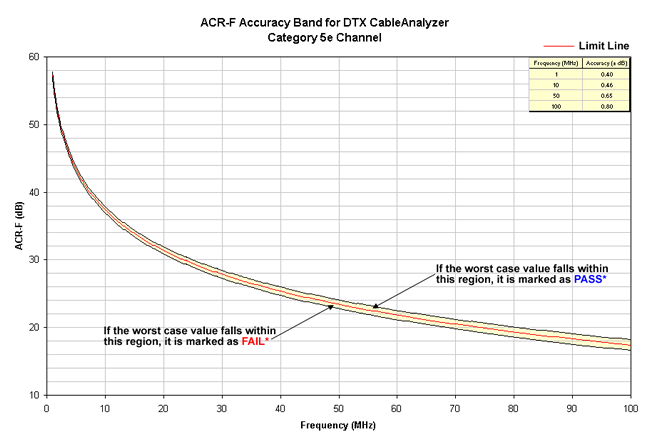

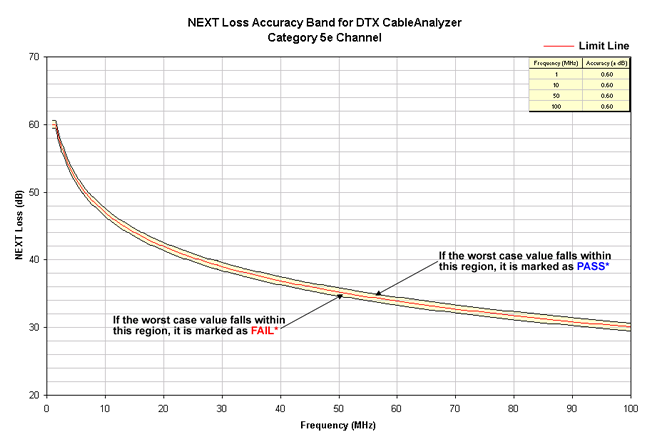

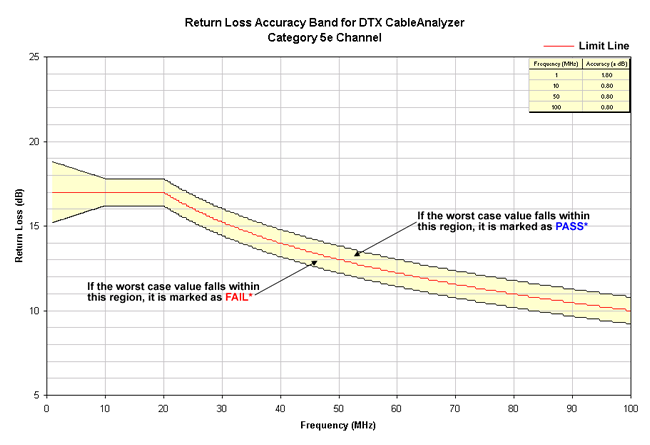

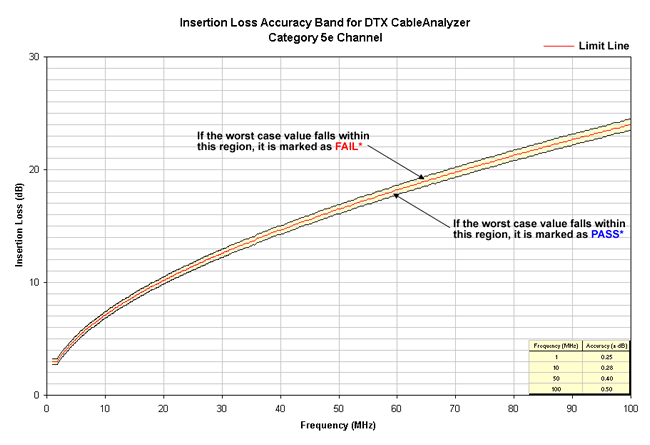

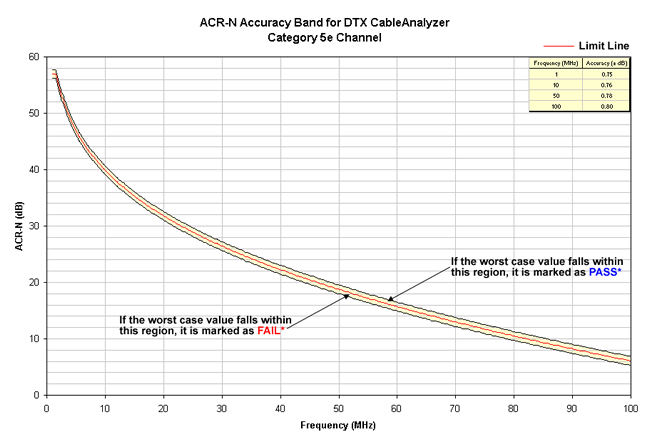

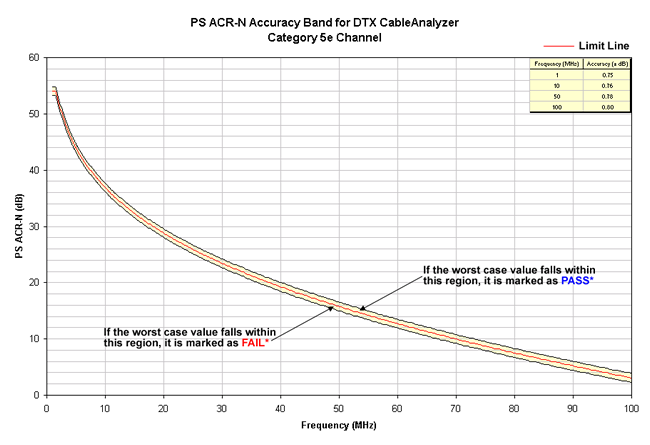

Kanal nach Kategorie 5e
You can also download these as a look up table.
 |
 |
 |
 |
 |
 |
 |
 |
Permanent Link nach Kategorie 6
You can also download these as a look up table.
|
|
|
|
|
|
|
|
Kanal nach Kategorie 6
You can also download these as a look up table.
|
 |
|
|
|
|
|
|
Permanent Link nach Kategorie 6A
You can also download these as a look up table.
|
|
|
|
|
|
|
|
Kanal nach Kategorie 6A
You can also download these as a look up table.
|
|
|
|
|
|
|
|
Permanent Link Klasse F
You can also download these as a look up table.
|
|
|
|
|
|
|
|
Kanal Klasse F
You can also download these as a look up table.
|
|
|
|
|
|
|
|
